arpschuino²

The classic arpschuino.

  • USB>serial on arpschuino²

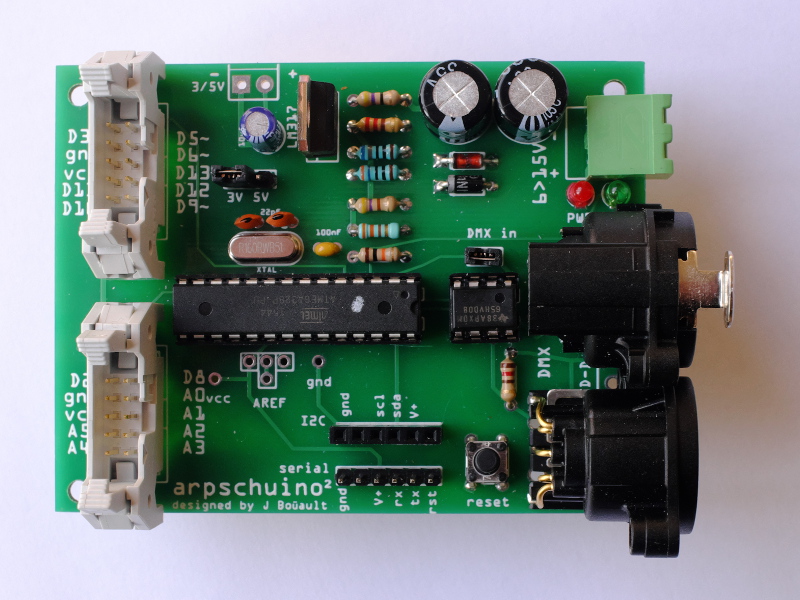

The arpschuino² is based on the same microcontroller as the Arduino boards, the ATmega 328. It provides a DMX link, for transmission or reception. Designed for live shows and harsh conditions, its power regulation has been particularly carefully designed.

Its applications are many: dimming LEDs, low voltage lamps, motors. Driving pixel LEDs, electromagnets or relays. Receive data from various sensors. Sending DMX in standalone mode...

Thanks to the arpRF , the arpschuino² can now communicate by radio link with another arpschuino², arpsensorsRF or wilulu.

See various usage examples.

The arpschuino² can be addressed with the arpdress board and programmed with the USB>serial or any other USB>TTL adapter.

Specifications :

  • 16 IO
  • 6 PWM outputs
  • 6 analog inputs
  • DMX in/out
  • 1 serial port
  • 1 I2C port
  • 1 power led and 1 signal led
  • Power supply: 7 to 13V (12 to 24V optionally)
  • Operating voltage selectable via a jumper: 3.3 or 5V
  • Dimensions : 87 mm / 67 mm

Price :

  • classic version : 39 €
  • XLR 3 version : 39€
  • XLR 5 version : 43€

Options :

  • multi-turn potentiometer (to set the analog reference) : 2 €
  • 10V pre-regulator (to supply the arpschuino² with a voltage between 12 and 24V) : 2 €
  • mini heat sink for regulator : 1 €
  • assembly service : 11€

The arpschuino² is supplied as a kit to be assembled yourself. We can assemble it for you on request.


 resources :

Assembling an arpschuino² R6.4(fr+en) : PDF

arpschuino² user guide : PDF

arpschuino XLR template : PDF     DWG


This website is not an online store. If you are interested in our boards, please contact us at arpschuino@gmx.fr

 versions :

R6 news:

Possibility to add an optional pre-regulator to supply the arpschuino² in 24V.

R5 news:

No more zener diode.

New I/O marking compatible with the arpschuino core.

Addition of a capacitor on the reset line of the serial port : No more need for an adapter with the USB>serial .

R4 news:

Reset on the I²C port, allows a remote reset with the arpdress board.

R3 news:

New 1W resistor for regulation.

GND marking in white.

R2 news:

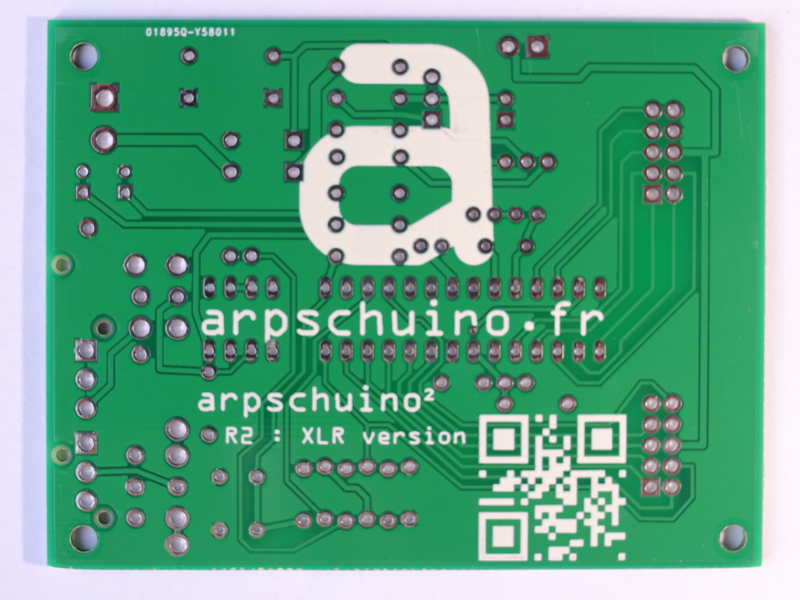

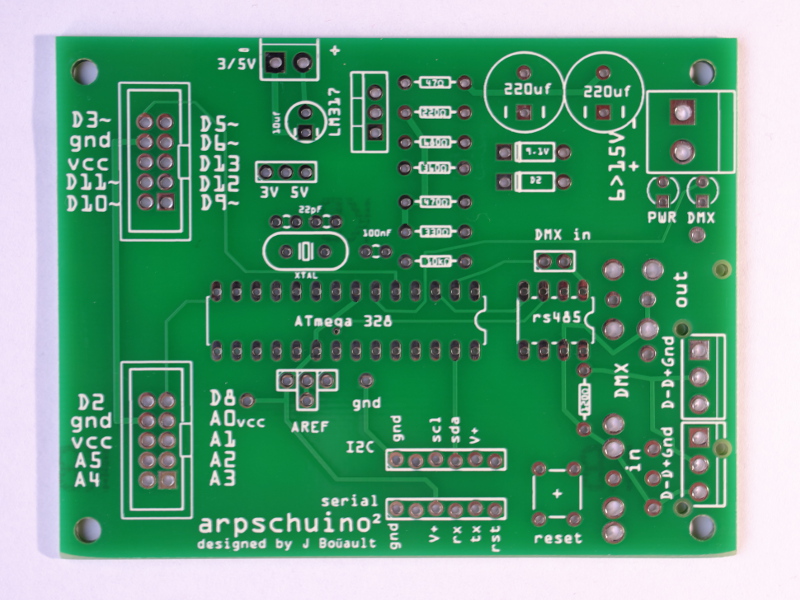

The arpschuino² R2 can be equipped with either XLR 3 or 5, or classic green connectors.

Protection against reverse polarity has been improved: the first capacitor is now downstream of the protection diode.

The fixing holes have been enlarged for the use of M3 screws.

A multi-turn potentiometer can be added to precisely set the analog reference.

arpschuino² news:

The arpschuino² can work at 5V or 3.3V, making it compatible with most current devices.

The HE10 ports can now supply power to devices.

DMX out now works without a jumper, so the jumper has been removed.

DMX and power connectors are now flat and the LEDs have been moved to make fitting in an enclosure easier.

A slot for 2 resistors allows the analog reference to be changed, using a voltage divider bridge.

The devices and source codes used with the arpschuino V1 remain compatible, without any modification.

The default code does not change.
